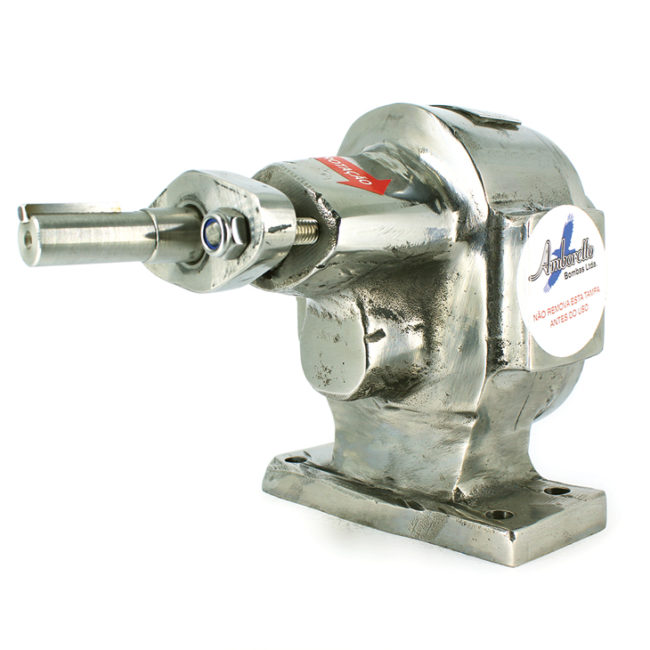

Gear Pump 3/4’ Stainless Steel DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 2,700 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 3/4” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding bearings in self-lubricating…
Gear Pump 3/4 Cast Iron With Mechanical Seal DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 2,700 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 3/4” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding…

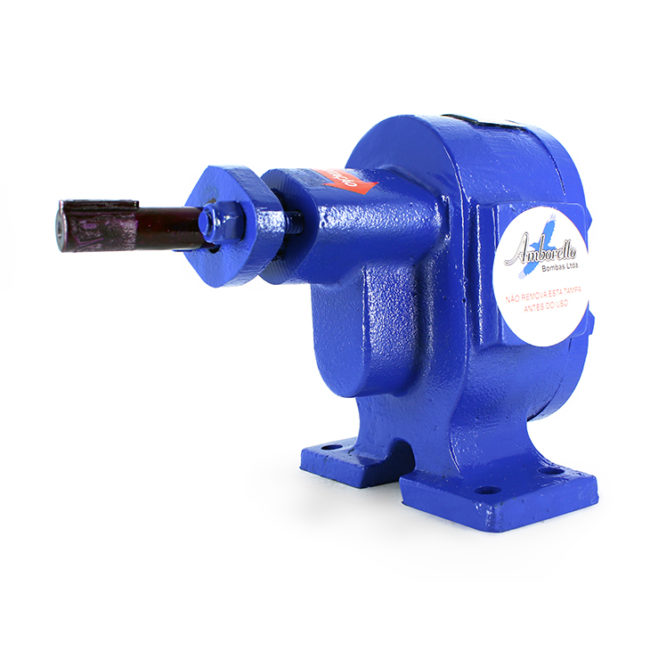

Gear Pump 3/4’’ Cast Iron DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 2,700 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 3/4” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding bearings in self-lubricating…
