Gear Pump 1.1/2” With Mechanical Seal

2", Cast Iron, Mechanical Seal, Products

Gear Pump 1.1/2” With Mechanical Seal DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 11,000 liters/hour Maximum Pressure: 15-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Flanged suction and retaining nozzles Ø 1.1/2”; (Norm ANSI B16.1 150 lbs); Gears helical teeth or spurs; Gasket or mechanical…

Gear Pump With Heating Chamber AMB 3X130CA

3", Cast Iron, Products, With Heating Chamber

Gear Pump With Heating Chamber Amb3x130ca DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 30,000 liters/hour Maximum Pressure: 15-bar Maximum Rotation: 1150-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Flanged suction and retaining nozzles Ø 3”; (Norm ANSI B16.1 150 lbs); Gears helical teeth or spurs; Gasket or mechanical…

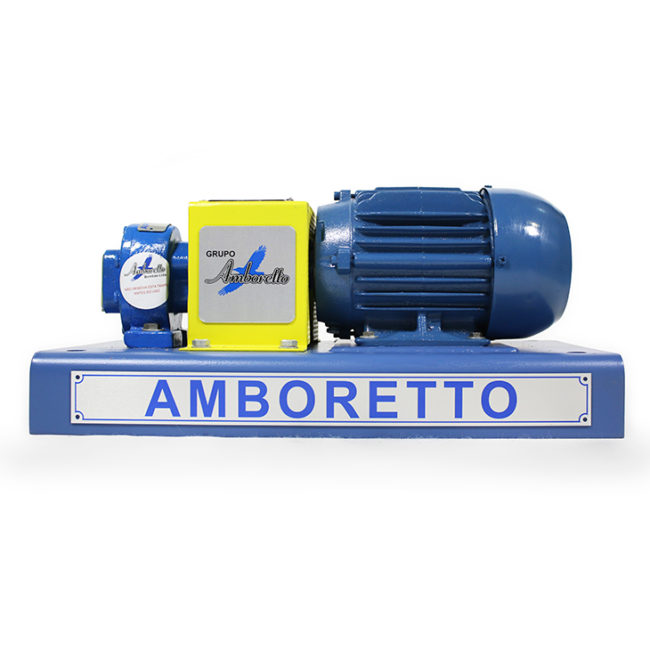

Gear Pump 1’’ Cast Iron With Motor

1", Cast Iron, Products, With Motor

Gear Pump 1’’ Cast Iron With Motor DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 4,000 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 1” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding bearings…

Gear Pump 3/4 Cast Iron With Mechanical Seal

3/4", Cast Iron, Mechanical Seal, Products

Gear Pump 3/4 Cast Iron With Mechanical Seal DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 2,700 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 3/4” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding…
