Gear Pump 1.1/2” Cast Iron DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 11,000 liters/hour Maximum Pressure: 15-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Flanged suction and retaining nozzles Ø 1.1/2” (Norm ANSI B16.1 150 lbs); Gears helical teeth or spurs; Gasket or mechanical seal;…
Gear Pump 1.1/2 ED 1.1/2X60B DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 13,500 liters/hour Maximum Pressure: 15-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Flanged suction and retaining nozzles Ø 1.1/2”; (Norm ANSI B16.1 150 lbs); Gears helical teeth or spurs; Gasket or mechanical seal;…
Gear Pump1.1/2” AMB 1.1/2x100B DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 12,200 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 1.1/2” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding bearings in self-lubricating bushings;…

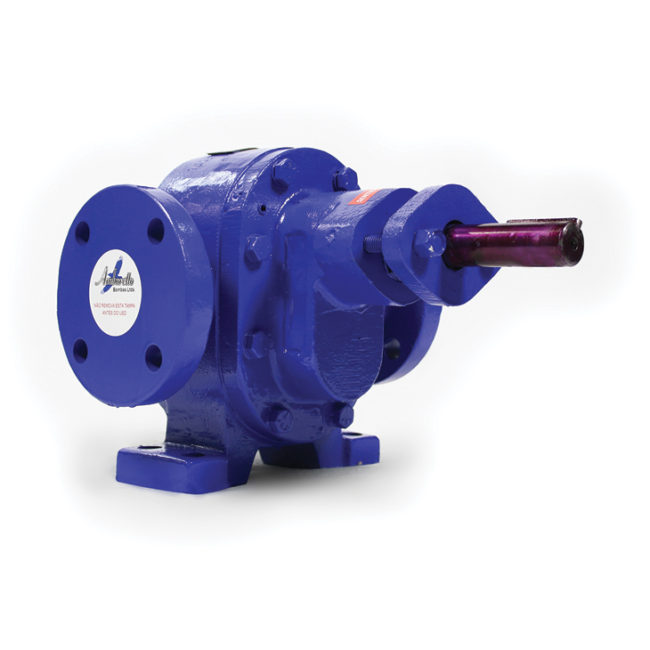

Gear Pump 1.1/2” AMB 1.1/2X100 DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 9,200 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 1.1/2” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding bearings in self-lubricating…

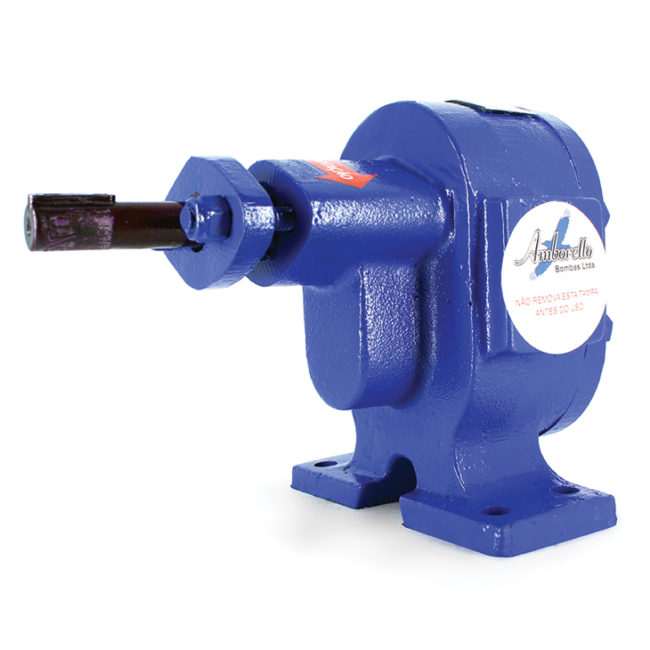

Gear Pump 1/2″ Cast Iron DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 1,100 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 1/2” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding bearings in self-lubricating…
