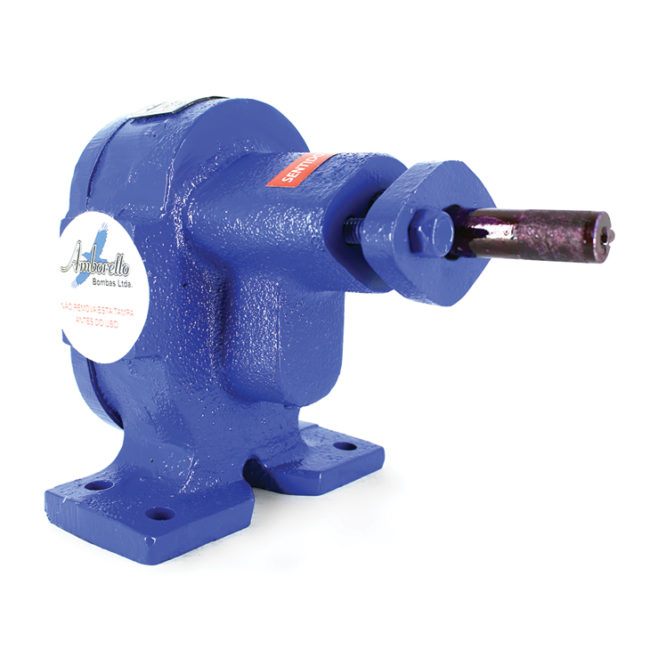

Gear Pump 1” AMB1X100 DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 7000 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 1” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding bearings in self-lubricating bushings;…

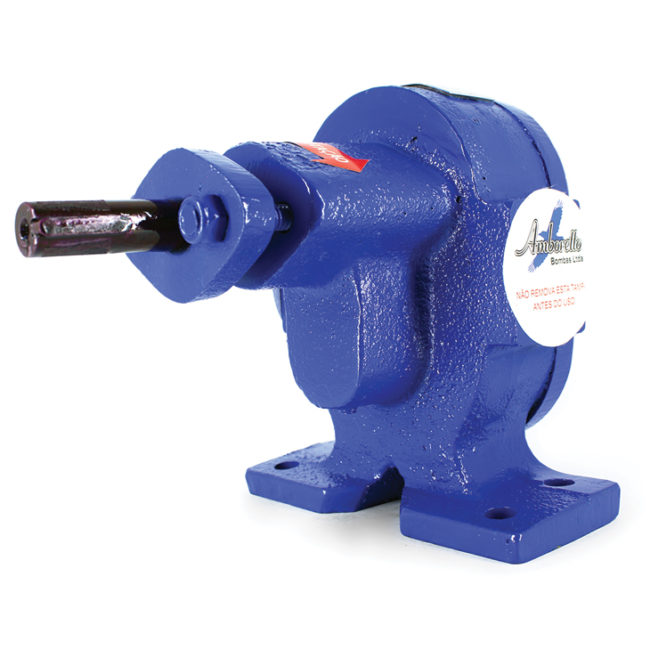

Gear Pump AMB 1’’ Cast Iron Std DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 4,000 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 1” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding bearings…
Gear Pump 1” Stainless Steel DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 4,000 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 1” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding bearings in self-lubricating…
Gear Pump 1’’ Cast Iron With Motor DOWNLOAD PDF CATALOGUE Product Description CAPACITY Maximum Flow: 4,000 liters/hour Maximum Pressure: 22-bar Maximum Rotation: 1750-RPM Viscosity: From 0,5 up to 200,000 cSt Maximum Temperature: Up to 350ºC CHARACTERISTICS Threaded suction and retaining nozzles Ø 1” BSP; Gears helical teeth or spurs; Gasket or mechanical seal; Sliding bearings…
